Rossie

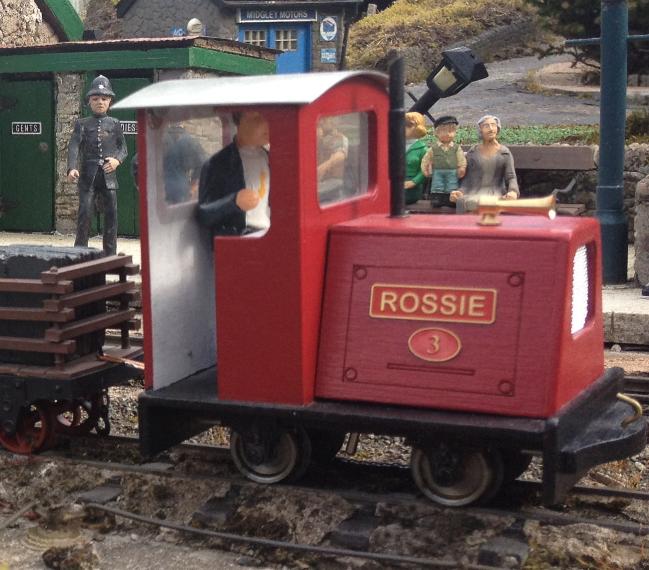

Rossie is an IP engineering Rapier fitted with 4 wheel drive and onboard 2.4GHz 2 channel radio control for speed and forward / reverse. Onboard power is provided by 4 Nimh rechargable batteries with the charging socket located underneath.

IMG_1133

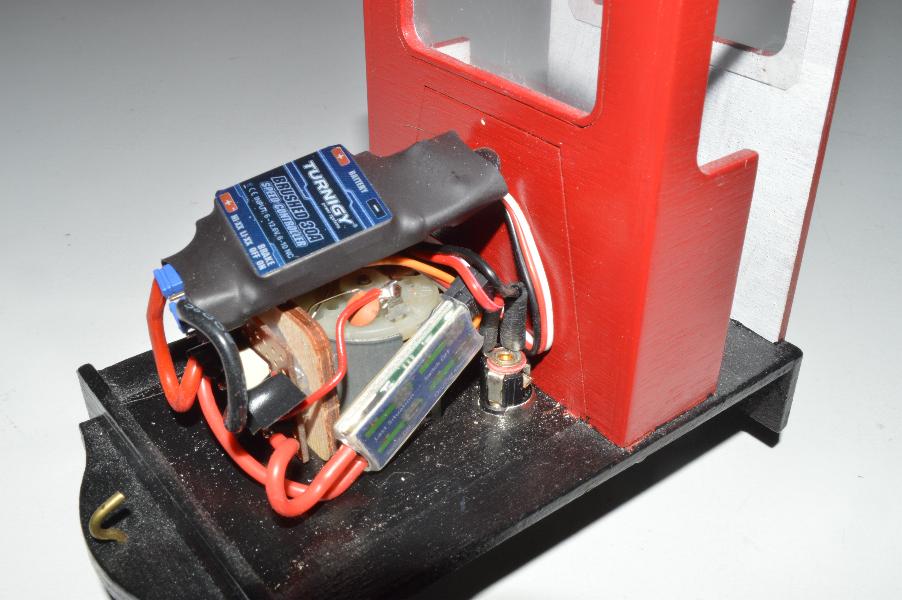

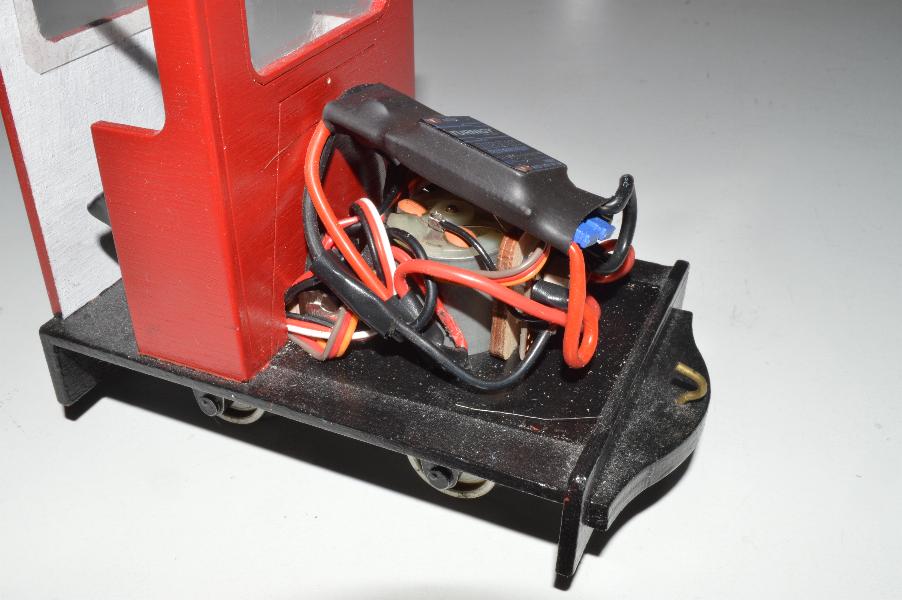

A bit of a squeeze for the electronics but it all fitted in under the bonnet with the battery pack and receiver under the dashboard inside the cab.

DSC_0821
DSC_0822

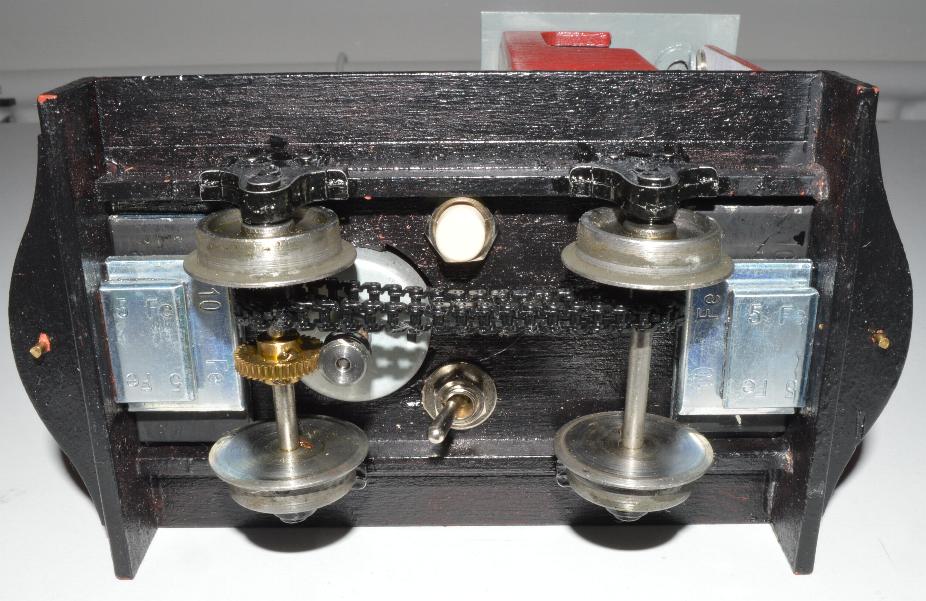

The underside of the loco showing the 4WD chain, 40:1 ratio metal gears, the ON/OFF switch and charging socket (with white plastic cover)

DSC_0828

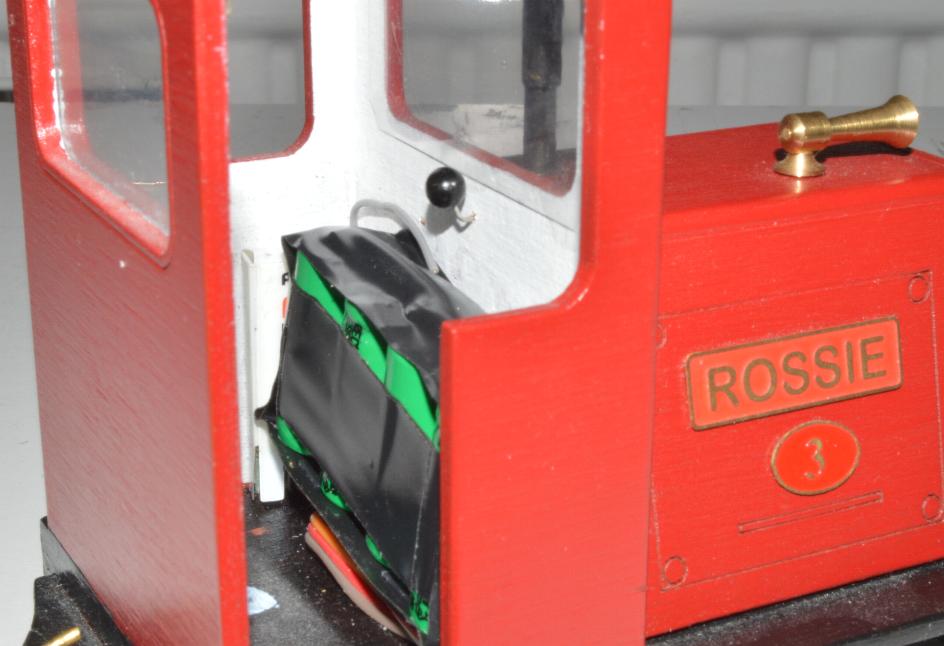

View inside the cab, with the dashboard removed, showing the Nimh re-chargable batteries with the Planet R/C receiver to the left of them.

DSC_0832
